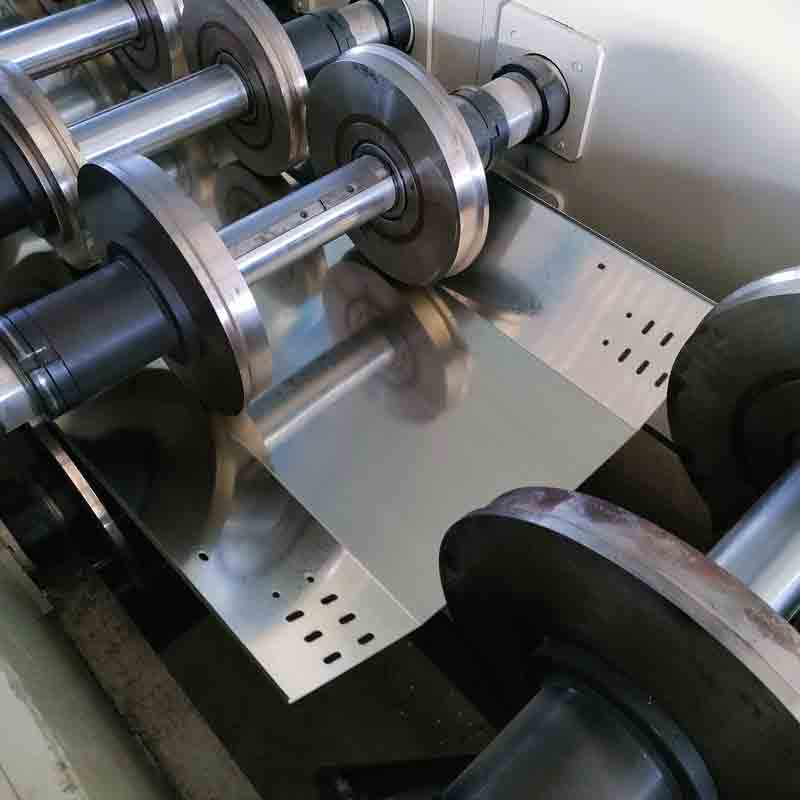

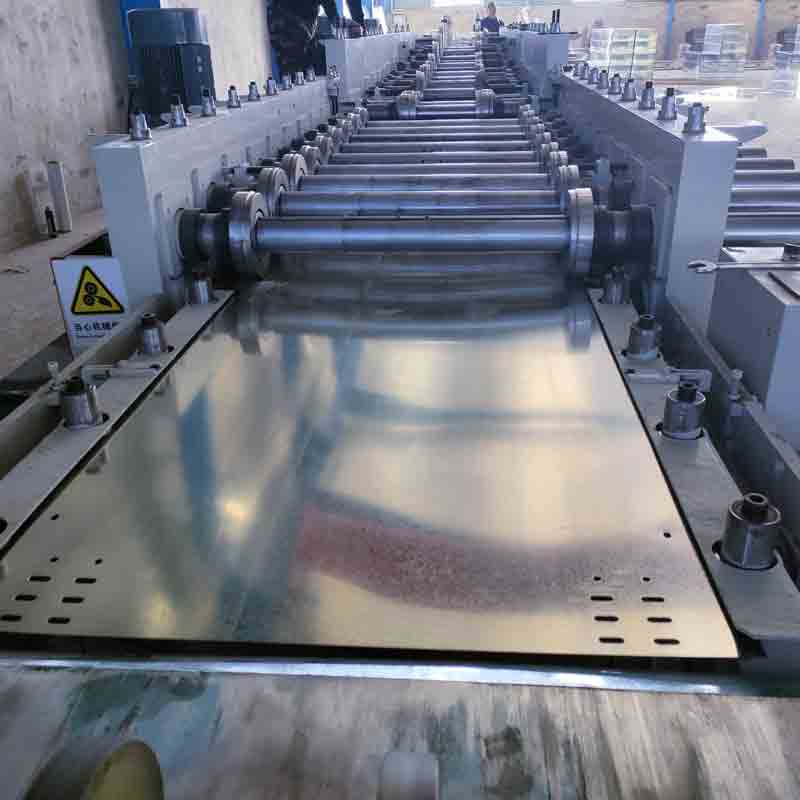

1000mm Roll Forming Host

The width-electrically adjustable through-shaft forming machine can quickly change specifications (waist height and width); the sheet material is gradually rolled into the finished bridge through 25 passes of rollers. It consists of a speed-adjustable AC motor, a reducer, a high-precision rolling linear guide, a left and right transmission box, a transverse adjustment mechanism, and a roller set. A set of rollers can complete the bridge forming of various specifications, and the variety can be changed by adjusting the position of the left and right rollers. The bed and transmission box adopt welded structures and are stress-relieved; the gears adopt hard tooth surfaces; the main machine structure is manufactured using forging technology, with higher precision.

  Contact Now E-Mail Telephone WhatsApp
Product Details

1. Spindle 90mm, surface hard chrome plated

2. 25 rows of forming roller

3. The main machine is divided into 3 sections

4. Extended feeding guide

5. 1 set of flat surface straightening after forming

6. Pressure roller material: GR12

7. Electric feeding 8. Side + bottom reinforcement

After the cut metal sheet is punched, it is sent to the forming host for roll forming. Only two people are required to feed and receive materials. The investment is small, the return is large, and the space is saved.
